Walking Submersible Drilling Platform

Name: Walking Submersible Drilling Platform
Brand: kerui
Price: 1 USD

Wholesale Walking Submersible Drilling Platform from china suppliers

Place of Origin : China (Mainland)

Brand Name : kerui

Contact Now

Detailed Product Description

Walking Submersible Drilling Platform

Introduction of the platform

This submersible drilling platform is a steel, non-propelled and walking platform which contains the main platform and external bottom hull, meanwhile, it can walk and move in the tidal zone. The main platform is made up by the upper deck, bottom hull and element pillar system, furthermore, there is a helicopter deck on the platform. What the characteristics above can prove this platform is very suit for working in the maritime space such as river mouth, swamp, tidal zone and neritic area.

Main parameters of the platform
platform	full length×full width	76m×43m
upper deck	length×width	52m×28m
external bottom hull	×width×depth	72m×42m×3.0m
internal bottom hull	length×width×depth	52m×28m×3.0m
main deck of the platform		15m
platform walking speed		60~100m/h
well head chase	length×width	12m×6m
derrick moving	vertical	5m
drilling capacity		7000m
hoisting capacity		35t×32m
platform draft		3m10m
light draft		2.5m
environmental temperature for platform operating		-10 +40
fixed number of staff members		90
Endurance		20days
working life		20years

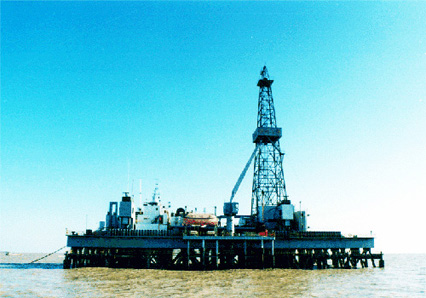

Walking Submersible Drilling Platform Images
