TQ Series of Casing Tongs

Name: TQ Series of Casing Tongs
Brand: kerui group
Price: 1 USD

Wholesale TQ Series of Casing Tongs from china suppliers

Place of Origin : China (Mainland)

Brand Name : kerui group

Model Number : PG26

Contact Now

Detailed Product Description

TQ Series of Casing Tongs

1. Products features
TQ series of casing tongs are widely used for making-up and breaking-out of casing or pipes .The casing tong features high-efficiency,safety,reliability,labor saving,and ensure connection quality.Tong head is designed as open and equipped with advanced swing-type double jaw assemble which can secure reliable clamping.This series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure,torque and rounds, The tongs are designed and manufactured according to industrial standard SY/T5074 and API Spec 7K Specification for Drilling Equipment

2. Technical Speciations

Model			TQ178-16	TQ178-16Y	TQ340-35	TQ340-35Y	TQ356-55	TQ508-70Y
Size Range		mm	101.6~178	101.6~178	114.3~340	114.3~340	114.3~356	114.3~356
Size Range		in	4~7	4~7	4 ~13	4 ~13	4 ~14	9 ~20
Max. pressure		Mpa	18	18	18	21	16.6	20
Max. pressure		psi	2610	2610	2610	3045	2407	2900
Working flow		L/min	110~140	110~160	110~160	110~170	110~160	110~170
Working flow		gpm	29.3~42.7	29.3~42.7	29.3~42.7	29.3~45.4	29.3~42.7	29.3~45.4
Air pressure		MPa	0.5~0.9		0.5~0.9		0.5~0.9
Air pressure		psi	72~130		72~130		72~130
Max. Torque	Hi.gear	KN·m	2.4~3	2.4~3	2.5~3	4.0~5.6	3.4~4.5	8.4~10.7
	Hi.gear	ft·lbf	1770~2210	1770~2210	1844~2210	2950~4130	2506~3319	6190~7890
	Mid.gear	KN·m	-	-	6.0~7.5	-	-	-
	Mid.gear	ft·lbf	-	-	4425~5530	-	-	-
	Lo.gear	KN·m	14.5~17.5	15~18	32~40	26~35.2	45~57.4	48.9~70.5
	Lo.gear	ft·lbf	10694~12900	11060~13270	23600~29500	19175~25960	33190~42400	37244~52000
Speed	Hi.gear	rpm	54~79	54~79	60~86	57~95	52~76	26~43.6
	Mid.gear	rpm	-	-	21~30	-	-	-
	Lo.gear	rpm	9~13.1	9~13	3.6~5.3	9~15	3.9~5.6	4~6.6
Szie		mm	1450× 760×740	1500× 760×780	1580× 900×880	1580× 900×860	1590× 950×900	2080× 1280×760
Szie		in	57× 30×29.1	59× 30×30.7	62.2× 35.4×34.6	62.2× 35.4×33.9	62.6× 35.4×35.4	82× 50.4×30
Weight		Kg	580	560	780	760	850	1550
Weight		lb	1280	1230	1720	1670	1870	3410

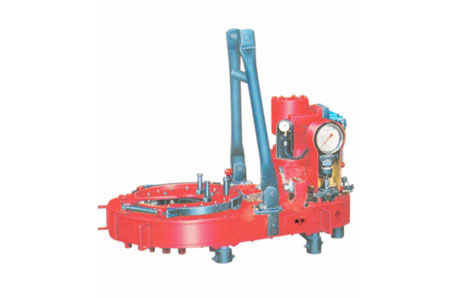

TQ Series of Casing Tongs Images
